System Architecture

Intento is a sovereign blockchain derived from the Cosmos SDK, designed specifically to orchestrate complex, asynchronous, and cross-chain workflows. At its core is the x/intent module, a specialized scheduling and execution engine that enables users to define "intents"—programmable actions that execute when specific conditions are met.

This document provides a high-level view of how Intento works, from the underlying consensus layer to the application logic that powers user intents.

High-Level Overview​

Intento operates on a standard CometBFT (formerly Tendermint) consensus engine, ensuring fast finality and security. The application layer is built using the Cosmos SDK, with the x/intent module serving as the central nervous system for all automation.

The architecture is designed to support:

  • Asynchronous Execution: Flows are not just executed immediately in a transaction but can be scheduled for future blocks.
  • Cross-Chain Interoperability: Deep integration with IBC (Inter-Blockchain Communication) allows Intento to act as a control center for accounts and assets on other chains.
  • Conditional Logic: Execution is gated by on-chain state, time, or even state from other chains (via Interchain Queries).

The Intent Module (x/intent)​

The x/intent module is the custom application logic that differentiates Intento from extensive general-purpose chains. It manages the lifecycle of every "Flow"—a set of instructions that makes up a user's intent.

For a deeper dive into the core concepts, see Intent Concepts.

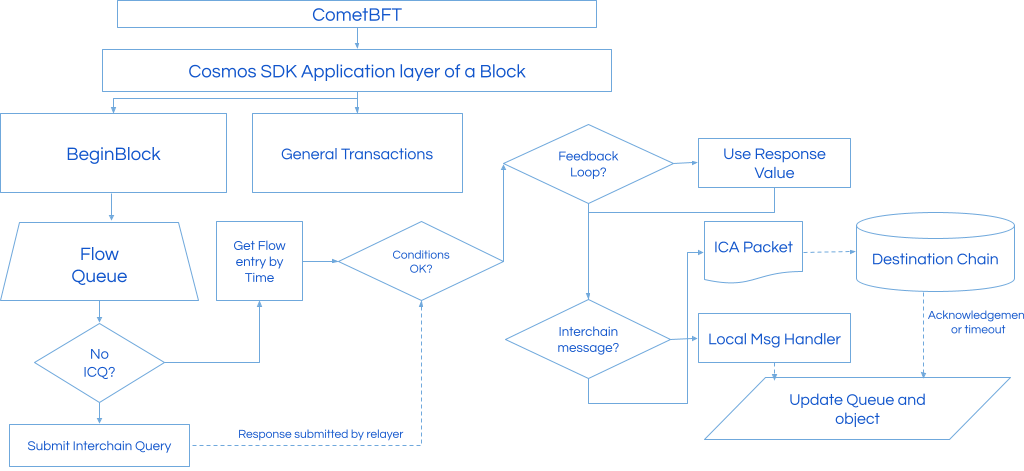

Flow Lifecycle​

The lifecycle of a flow involves submission, queuing, validation, and execution.

  1. Submission: A user submits a MsgSubmitFlow transaction. This message contains the actions to execute, scheduling parameters (start time, interval), and conditions.

  2. Scheduling & Queueing: If the flow is valid, it is added to the module's internal store. The BeginBlocker function runs at the start of every block to check if any flows are due for execution based on their EndTime or Interval.

  3. Condition Check: Before execution, the module evaluates any associated conditions. This might involve checking local account balances or verifying data returned from an Interchain Query (ICQ).

    • See Conditions for logic available during execution.

  4. Execution:

    • Local: If the flow is local, messages are wrapped and executed via the standard Cosmos SDK MsgServiceRouter. This includes standard module interactions (e.g., specific x/bank sends) as well as initiating cross-chain transfers via the local IBC module (e.g., MsgTransfer).
    • Interchain: If the flow targets another chain, the module constructs an IBC packet (usually controlling an Interchain Account) and efficiently sends it out.

State Management​

Flows are indexed by ID and strictly associated with their creator. The module maintains efficient data structures to quickly retrieve:

  • Active flows pending execution.
  • Flows waiting for a specific time window.
  • Results of previous executions (for flows with feedback loops).

Cross-Chain Architecture​

Intento is built to be a cross-chain orchestrator. It uses standard IBC protocols and next-generation interoperability layers like Union to interact with the wider ecosystem.

Proxy Accounts​

Intento uses Proxy Accounts to execute actions on remote chains. Instead of moving assets to Intento, users control an account on a host chain (like Osmosis, Neutron, or Arbitrum) from Intento. The x/intent module sends instructions to the host chain, where they are executed as if the user signed them locally.

There are two main types of Proxy Accounts:

  1. Interchain Accounts (ICA): Standard Cosmos SDK implementation. Requires an explicit registration step. Used primarily for Cosmos chains.
  2. Union Proxy Accounts: Used for EVM chains (e.g., Ethereum, Arbitrum, Base) connected via Union. These are inferred (deterministically derived from your Intento address), so no account creation is required.

Union (UCS03)​

Union provides a zero-knowledge–based interoperability layer that enables secure cross-chain messaging without trusted relayers. Intento integrates with Union’s UCS03 (ZKGM) protocol.

EVM Integration: When targeting EVM chains, Intento utilizes Union Proxy Accounts. Since these accounts are deterministic, users can immediately start executing flows. However, executing actions on the destination chain requires Permits or Approvals (EIP-2612 or standard ERC-20 approvals) to allow the proxy to spend assets. Make sure to sign the necessary approvals on the target EVM chain before submitting flows.

Security & Authentication​

Authentication & Delegated Execution​

Intento supports advanced authentication mechanisms to allow for flexible yet secure automation. Users can delegate execution rights to "Trustless Agents"—specialized accounts that can pay for fees and execute flows on behalf of the user without having full custody of the user's main assets.

Consensus & Timestamps​

CometBFT provides the secure timestamping mechanism required for time-based intents. Since the BeginBlocker relies on strictly increasing block times, Intento guarantees that scheduled flows are executed as close to their target time as the consensus allows, without relying on centralized off-chain keepers.

Integration & Observability​

For teams looking to integrate with Intento, the platform provides standard Cosmos SDK interfaces and emitted events for tracking flow status.

Interfaces​

  • gRPC / REST: Full state querying of flows, params, and authentication status.
  • CometBFT RPC: For subscribing to block results and transactions.

Event Stream​

The x/intent module emits specific typed events that external systems can index to track the lifecycle of a flow. Key events include:

  • flow-created: Emitted when MsgSubmitFlow is successful.
  • flow-triggered: Emitted by BeginBlocker when a flow attempts execution.
  • flow-msg-response / flow-msg-timed-out: Emitted after execution to indicate success or failure.
  • flow-error: Emitted if a condition check or execution fails.
